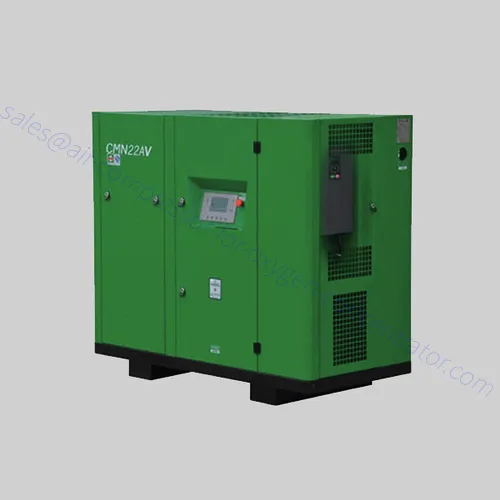

Variable Frequency Flammable And Explosive Gas And Special Required Gas Compressor Of CMN/AV Series

Application of frequency conversion technology CMN frequency conversion screw air compressor can precisely change the speed according to the air consumption when the exhaust pressure is stable, so that the air compressor only produces the required air volume. In order to achieve the purpose of energy saving, the energy saved exceeds the cost of the air compressor itself. Efficient Power Return Inverter Compressor Displacement can be combined with air… FOB Price: US$0.5- 9,999/pc MOQ: 100pcs/pc Supply Ability: 10000pcs per month Payment Terms: L/C,D /A,D/P,T/T The following is the introduction of CMN/AV series frequency conversion flammable and explosive gas and gas compressors with special requirements, hoping to help you understand better.

Variable Frequency Flammable And Explosive Gas And Special Required Gas Compressor

A variable frequency compressor for flammable, explosive, or special required gas applications would require specific design considerations to ensure safe and efficient operation.

Firstly, the materials used in the compressor should be carefully selected to ensure compatibility with the gas being compressed. This may include using special coatings, seals, or other materials that resist corrosion, erosion, or chemical reactions.

Secondly, the compressor should be designed with explosion-proof features, such as spark-resistant materials, grounding points, or seals to prevent gas leakage. It should also include safety features, such as automatic shut-off valves or alarms to detect and respond to any dangerous conditions.

Thirdly, the compressor should have a variable frequency drive (VFD) to control the speed of the compressor motor. This allows for precise control of the gas flow and pressure while minimizing energy usage and reducing wear and tear on the compressor.

Overall, a variable frequency compressor for flammable, explosive, or special required gas applications should be designed with safety as the top priority, while also providing reliable and efficient performance.

Application of Variable Frequency Technology

When the exhaust pressure is stable, the CMN variable frequency screw air compressor can precisely change the speed according to the air consumption, so that the air compressor can only produce the required air volume. In order to achieve the purpose of energy saving, the energy saved exceeds the cost of the air compressor itself.

Efficient Power Returns

The displacement of the inverter compressor is perfectly combined with the gas consumption, completely avoiding the loss of unloading power. The pressure is reduced by 0.2MPa, which directly saves energy by 14%.

Arbitrary pressure set, and keep constant pressure supply

The machine can meet the user’s set pressure within the range of 0.4-1.2MPa (note: the maximum pressure needs to be determined when purchasing the machine), and the unit always maintains a constant pressure gas supply of ±0.01MPa. When the gas consumption increases, the unit will automatically increase the speed; when the gas consumption decreases, the unit will automatically reduce the speed to maintain the continuous supply pressure of the system.

More reliable operation

Frequency conversion soft starts to prevent the impact of the grid and avoid the mechanical impact of the machine itself. No contactor, no electrical contact failure, more stable and reliable operation.

Technical Parameters of Variable Frequency Micro Oil Screw Air Compressor of Cmn/Av Series

 Model

 Work pressure

 FAD

 Air Supply

temperature



Power

 Noise

 Oil content

(supply air)

 Weight

 Cooling

Fan power

 Air outlet

diameter

Dimension

L*W*H

Mpa

M³/min

cfm

 °C

kW

dB(A)

PPM

KGS

W



mm

CMN08AV

0.8

1.31

46

≤ambient

temperature

+15℃

7.5

62

≤2

302

120×1

3/4ʺ

990×640×980

1.0

1.11

39

CMN11AV

0.8

1.81

64

11

62

322

120×1

3/4ʺ

990×640×980

1.0

1.52

54

1.25

1.35

48

CMN15AV

1.6

1.21

43

15

63

505

370×1

1250×790×1290

0.8

2.60

92

1.0

2.35

83

1.25

1.73

61

CMN18AV

1.6

1.67

59

18.5

65

535

370×1

1250×790×1290

0.8

3.30

117

1.0

2.90

102

1.25

2.40

85

CMN22AV

1.6

2.40

85

22

65

565

370×1

1250×790×1290

0.8

3.90

138

1.0

3.50

124

1.25

2.90

102

CMN30AV

1.6

3.04

107

30

66

730

1300×1

1 1/2ʺ

1500×950×1420

0.8

4.92

173

1.0

4.22

149

1.25

3.81

134

CMN37AV

1.6

3.60

127

37

67

770

1300×1

1 1/2ʺ

1500×950×1420

0.8

6.30

222

1.0

5.50

194

1.25

5.10

180

CMN45AV

1.6

4.53

160

45

68

1196

1800×1

1850×1105×1600

0.8

7.50

265

1.0

6.30

222

1.25

5.84

206

CMN55AV

1.6

5.80

205

55

70

1290

1800×1

1850×1105×1600

0.8

10.30

364

1.0

9.10

321

1.25

7.60

268

CMN75AV

1.6

6.90

244

75

73

1570

2200×1

1900×1200×1660

0.8

12.60

445

1.0

11.50

406

1.25

9.94

351

CMN90AV

1.6

9.50

335

90

73

2270

370×1

2 1/2ʺ

2000×1320×1905

0.8

16.11

569

1.0

14.52

513

4000×1

1.25

12.30

434

CMN110AV

1.6

11.60

410

110

78

2290

370×1

2 1/2ʺ

2000×1370×1980

0.8

20.10

710

1.0

17.10

604

4000×1

1.25

15.22

537

CMN132AV

1.6

15.10

533

132

78

2550

370×1

2 1/2ʺ

2000×1320×1905

0.8

23.10

816

1.0

20.38

720

4000×1

1.25

18.29

646

CMN160AV

1.6

19.10

674

160

78

3800

3500×2

2900×1720×2100

0.8

28.85

1019

1.0

24.52

866

3500×2

1.25

22.17

783

CMN200AV

1.6

21.90

773

200

78

4100

5500×2

3100×1800×2292

0.8

36.63

1293

1.0

32.70

1155

5500×2

1.25

27.72

979

CMN250AV

1.6

27.40

967

250

78

4500

5500×2

3100×1800×2292

0.8

42.88

1514

1.0

39.00

1377

5500×2

1.25

34.64

1223

Compressed Air in Everyday Life



From air drills and braking systems to HVAC units, a wide range of air tools and machines make everyday life comfortable, safe, and productive. In nearly every building you walk or pass by on a given day, air tools help people sand wood, paint walls, hammer beams and drywall into place. In workshops around the world, compressed air is used to add layers of paint and to blow away dust and debris.

It is remarkable that man has discovered a way to take ambient air, possibly the most abundant resource on earth, and convert it into power for motorized equipment for a variety of purposes.

We offer a wide range of high-quality air compressors including screw, reciprocating/piston and oil-free. Use our sales and service locator to find a dealer near you.
