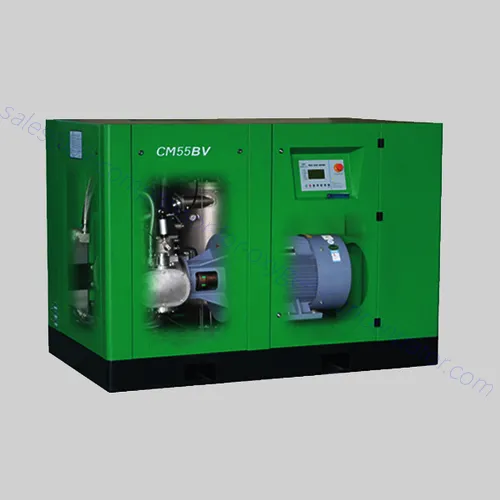

Variable Frequency Oil-Free Screw Air Compressor Of Water Lubrication CM/BV Series
Why use a variable frequency screw air compressor? 1. Energy saving, the gas consumption will change in many cases, and the variable frequency screw air compressor can adjust the speed of the compressor according to the change of gas consumption, avoiding frequent loading and unloading to save electricity. 2. Accurate exhaust pressure, CM/BV water-lubricated variable frequency oil-free screw air compressor pressure fluctuation can reach within 0.01MPa… FOB price: US$0.5- 9,999 / Piece Min.Order Quantity: 100 Piece/Pieces Supply Ability : 10000pcs per month Payment terms: L/C, D/A, D/P, T/T The following is the introduction series of water-lubricated frequency conversion oil-free screw air compressor CM/BV, hoping to help you understand it better.
Variable Frequency Oil-free Screw Air Compressor Of Water Lubrication
A variable frequency oil-free screw air compressor of water lubrication is a type of air compressor that utilizes advanced technology to control and adjust the speed at which the compressor operates. These compressors operate using water as a lubricant to ensure the internal components remain cool and friction-free.
The design of a variable frequency oil-free screw air compressor of water lubrication allows the speed of the compressor to be adjusted based on demand. This means that the compressor can operate at a lower speed when demand is low, reducing energy consumption and improving energy efficiency. When demand increases, the compressor can ramp up the speed to meet the required output.
Using a variable frequency drive (VFD) to control the speed of the compressor allows for precise control of the compressor’s output. This means that the compressor can deliver the right amount of air needed for the application, improving overall efficiency and reducing energy costs.
The oil-free design of these compressors also means that the compressed air produced is clean, dry, and free from oil contaminants, making them suitable for use in industries such as food processing, pharmaceuticals, and electronics.
In addition, these compressors require less maintenance compared to traditional oil-lubricated compressors, due to the lack of oil and associated maintenance tasks such as oil changes or oil filter replacements.
Overall, a variable frequency oil-free screw air compressor of water lubrication is an advanced technological solution for compressed air needs that delivers energy efficiency, precise control, and clean, dry, and oil-free compressed air.
Why Use the Variable Frequency Screw Air Compressor?
1. Energy saving, the gas consumption will change in many cases, the frequency conversion screw air compressor can adjust the speed of the compressor according to the change of gas consumption, and avoid frequent loading and unloading, so as to achieve the purpose of saving electricity.
2. Accurate exhaust pressure, CM/BV water-lubricated frequency conversion oil-free screw air compressor can reach 0.01MPa within the pressure fluctuation range.
3. Avoid the peak value of the current. CM inverter starts more smoothly than the general soft start, avoids the peak value of current, and has no impact on the power grid.
4. CM full series of frequency conversion screw air compressors have their own power frequency and frequency conversion switching function
variable frequency. It can be freely selected according to gas consumption to achieve the lowest electricity cost.
CM/BV screw air compressor adopts the variable frequency motor with its large scope of speed
adjustment, strong torsion under low frequency, and outstanding stability.
CM/BV screw air compressor adopts a special inverter with its higher reliability and longer service life.
Technical Parameters of Variable Frequency Oil-Free Screw Air Compressor of Water Lubrication of CM/BV Series
|
Model |
Work pressure |
FAD |
Power |
Noise |
Weight |
Pipe diameters of cooling water inlet and outlet |
Cooling fan power |
Dimension |
Air outlet |
|
|
Water entering32℃ |
L×W×H |
|||||||||
|
MPa |
M³/min |
cfm |
kW |
dB(A) |
kg |
T/h |
mm |
|||
|
CM08BV(F) |
0.8 |
1.15 |
7.5 |
58 |
637 |
3/4ʺ |
2 |
1550×775×1445 |
3/4ʺ |
|
|
1.0 |
1.02 |
|||||||||
|
CM11BV(F) |
0.8 |
1.55 |
11 |
58 |
657 |
3/4ʺ |
2.5 |
1550×775×1445 |
3/4ʺ |
|
|
1.0 |
1.32 |
|||||||||
|
1.25 |
1.02 |
|||||||||
|
CM15VB(F) |
0.8 |
2.40 |
15 |
63 |
907 |
1ʺ |
3.5 |
1900×1000×1635 |
1ʺ |
|
|
1.0 |
2.12 |
|||||||||
|
1.25 |
1.61 |
|||||||||
|
CM18BV(F) |
0.8 |
3.10 |
18.5 |
65 |
993 |
1ʺ |
4 |
1900×1000×1635 |
1ʺ |
|
|
1.0 |
2.62 |
|||||||||
|
1.25 |
2.13 |
|||||||||
|
CM22BV(F) |
0.8 |
3.50 |
22 |
65 |
1023 |
1ʺ |
5 |
1900×1000×1635 |
1ʺ |
|
|
1.0 |
3.13 |
|||||||||
|
1.25 |
2.61 |
|||||||||
|
CM30BV(F) |
0.8 |
5.00 |
30 |
66 |
1300 |
1 1/2ʺ |
7 |
1900×1050×1430 |
1 1/2ʺ |
|
|
1.0 |
4.20 |
|||||||||
|
1.25 |
3.18 |
|||||||||
|
CM37BV(F) |
0.8 |
6.10 |
37 |
67 |
1320 |
1 1/2ʺ |
9 |
1900×1050×1430 |
1 1/2ʺ |
|
|
1.0 |
5.22 |
|||||||||
|
1.25 |
4.81 |
|||||||||
|
CM45BV(F) |
0.8 |
7.30 |
45 |
68 |
1569 |
1 1/2ʺ |
10 |
2200×1350×1530 |
2ʺ |
|
|
1.0 |
6.13 |
|||||||||
|
1.25 |
5.65 |
|||||||||
|
CM55BV(F) |
0.8 |
9.60 |
55 |
70 |
1665 |
1 1/2ʺ |
12 |
2200×1350×1530 |
2ʺ |
|
|
1.0 |
8.60 |
|||||||||
|
1.25 |
7.42 |
|||||||||
|
CM75BV |
0.8 |
12.50 |
75 |
73 |
1889 |
1 1/2ʺ |
18 |
2200×1350×1530 |
2ʺ |
|
|
1.0 |
11.42 |
|||||||||
|
1.25 |
9.83 |
|||||||||
|
CM90BV |
0.8 |
16.30 |
90 |
73 |
2356 |
1 1/2ʺ |
20 |
2550×1400×1605 |
2 1/2ʺ |
|
|
1.0 |
14.52 |
|||||||||
|
1.25 |
12.30 |
|||||||||
|
CM110BV |
0.8 |
19.40 |
110 |
78 |
2376 |
1 1/2ʺ |
24 |
2550×1400×1605 |
2 1/2ʺ |
|
|
1.0 |
16.90 |
|||||||||
|
1.25 |
15.10 |
|||||||||
|
CM132BV |
0.8 |
22.21 |
132 |
78 |
2522 |
2ʺ |
30 |
2550×1400×1605 |
2 1/2ʺ |
|
|
1.0 |
20.38 |
|||||||||
|
1.25 |
18.29 |
|||||||||
|
CM160BV |
0.8 |
28.85 |
160 |
78 |
3810 |
3ʺ |
35 |
3100×1700×2090 |
4ʺ |
|
|
1.0 |
24.52 |
|||||||||
|
1.25 |
22.17 |
|||||||||
|
CM200BV |
0.8 |
36.63 |
200 |
78 |
3910 |
3ʺ |
43 |
3100×1700×2090 |
4ʺ |
|
|
1.0 |
32.70 |
|||||||||
|
1.25 |
27.72 |
|||||||||
|
CM250BV |
0.8 |
42.88 |
250 |
78 |
4120 |
3ʺ |
53 |
3100×1700×2090 |
4ʺ |
|
|
1.0 |
39.00 |
|||||||||
|
1.25 |
34.64 |
|||||||||
|
CM320BV |
0.8 |
59.10 |
320 |
80 |
6350 |
4ʺ |
60 |
3600×2800×2000 |
5ʺ |
|
|
1.0 |
53.50 |
|||||||||
|
1.25 |
48.25 |
|||||||||
Compressed Air in Everyday Life
From air drills and braking systems to HVAC units, a wide range of air tools and machines make everyday life comfortable, safe, and productive. In nearly every building you walk or pass by on a given day, air tools help people sand wood, paint walls, hammer beams and drywall into place. In workshops around the world, compressed air is used to add layers of paint and to blow away dust and debris.
It is remarkable that man has discovered a way to take ambient air, possibly the most abundant resource on earth, and convert it into power for motorized equipment for a variety of purposes.
We offer a wide range of high-quality air compressors including screw, reciprocating/piston and oil-free. Use our sales and service locator to find a dealer near you.
